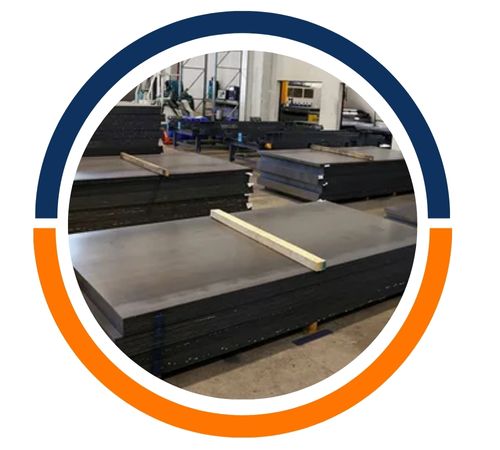

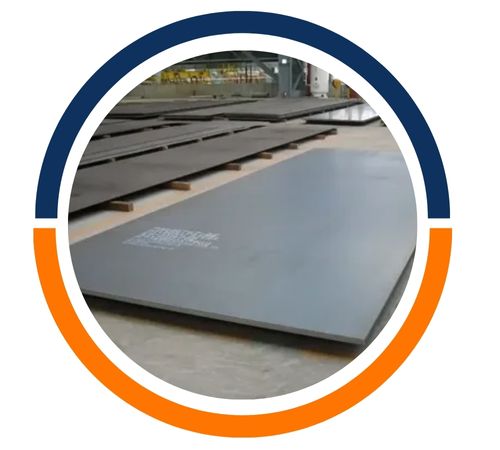

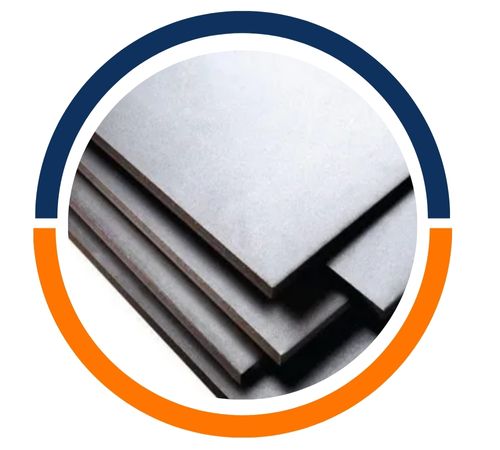

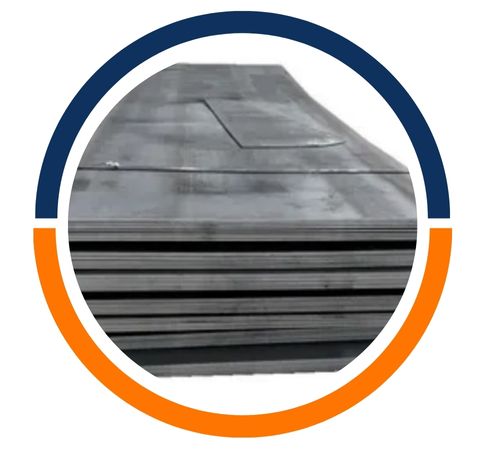

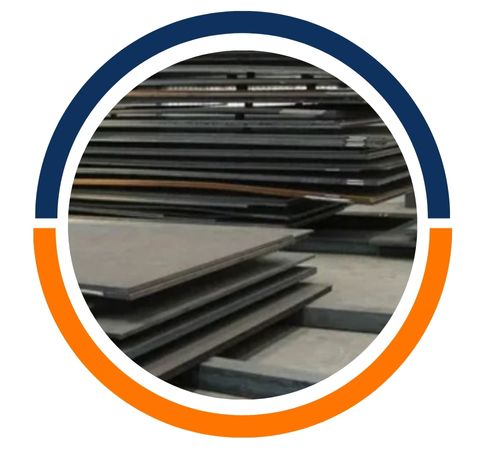

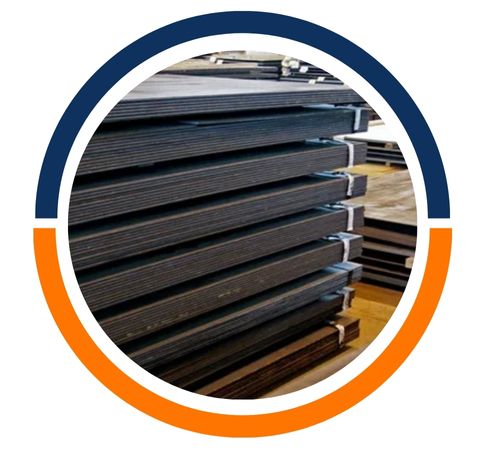

Travis Steel stands out as a top manufacturer and supplier in Canberra, Australia, specializing in high-quality Boiler Quality Sheets and Plates. These products are specifically crafted for high-temperature and pressure applications in industrial settings. Made from carefully chosen carbon steel, they offer remarkable strength, durability, and resistance to creep and thermal fatigue. Travis Steel guarantees that every item adheres to strict international standards for boiler-grade steel, ensuring dependable performance in power plants, heating systems, and industrial boilers. With precise dimensions, exceptional surface quality, and consistent mechanical properties, these sheets and plates are perfect for demanding applications that require long-lasting performance.
Boiler Quality Sheets and Plates are crafted from carbon steel, incorporating controlled levels of manganese, phosphorus, sulfur, and other alloying elements to achieve outstanding strength and toughness. They boast a tensile strength between 410–540 MPa and a yield strength of 205–290 MPa, making them suitable for high-temperature and pressure applications. These sheets and plates also show good ductility, weldability, and creep resistance. Through heat treatment and controlled rolling processes, their hardness and mechanical stability are enhanced, ensuring reliable performance in boilers, pressure vessels, and heat exchangers under challenging operational conditions.
Standard: ASTM A516 / ASME SA 516 Gr 60 / 65/ 70
Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering: Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing : Hot-Rolled (HR)
| C | Mn | P max | S max | Si max | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| t < 12.5 mm | 12.5mm < t =50mm | 50mm < t ≤ 100mm | 100mm < t ≤ 200mm | t < 200 mm | t < 12.5 mm | t 12s.5 mm | ||||
| A516 Grade 55 | 0.18 | 0.2 | 0.22 | 0.24 | 0.26 | 06-09 | 0.55-0.98 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 60 | 0.21 | 0.23 | 0.25 | 0.27 | 0.27 | 06-09 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 65 | 0.24 | 0.26 | 0.28 | 0.29 | 0.29 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 70 | 0.27 | 0.28 | 0.3 | 0.31 | 0.31 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation in 200mm(%) | Elongation in 50mm(%) | |
|---|---|---|---|---|---|---|
| A516 Grade 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Grade 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Grade 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Grade 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | EN 10028-2 | DIN 17155> | BS 1501 | ASTM | JIS G3115 |
|---|---|---|---|---|---|
| 1.0345 | P235GH | HI | 161 Gr. 360 / 164 Gr. 360 | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
| 1.0425 | P265GH | HII | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 414 Gr. E / A 516 Gr. 60 | |
| 1.0481 | P295GH | 17 Mn 4 | 224 Gr. 490 | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 1.0473 | P355GH | 19 Mn 6 | A 414 Gr. G | SPV 36 | |
| 1.5415 | 16Mo3 | 15 Mo 3 | 1503 – 243 B | A 204 Gr. B | |
| 1.7335 | 13CrMo4-5 | 13CrMo 4 4 | 620 Gr. 27 | A 387 Gr. 12 | |
| 1.738 | 10CrMo9-10 | 10CrMo 9 10 | 622 Gr. 31 | A 387 Gr. 22 | |
| 1.7383 | 11CrMo9-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) |
|---|---|---|---|---|---|
| 8 | 2055 x 12100 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 20 | 2055 x 12000 | 60 | 3000 x 6000 | |
| 3460 x 14000 | 3000 x 12000 | 65 | 3000 x 6000 | ||
| 3460 x 14000 | |||||
| 6 | 2055 x 12100 | 18 | 2055 x 12100 | 50 | 2055 x 8000 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 55 | 3000 x 6000 | |||
| 12.5 | 2055 x 12100 | 4000 x 12000 | 90 | 3000 x 4000 | |
| 3460 x 14000 | 2500 x 12000 | ||||
| 3000 x 12000 | 25 | 2055 x 12000 | 100 | 3000 x 4000 | |
| 2500 x 12000 | |||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 4000 x 12000 | |||||
| 10 | 2055 x 12100 | 4000 x 12000 | 70 | 3000 x 6000 | |
| 4000 x 12000 | 3000 x 12000 | 80 | 3000 x 6000 | ||
| 3000 x 12000 | 22 | 2055 x 12100 | 75 | 3000 x 6000 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 2500 x 12000 | ||||
| 3460 x 14000 | |||||
| 15 | 2055 x 12100 | 2500 x 12000 | |||
| 4000 x 12000 | 2500 x 10000 | ||||
| 3000 x 12000 | |||||
| 2500 x 12000 | 3000 x 10000 | ||||
| 3460 x 14000 | 40 | 2055 x 12000 | |||
| 3000 x 10000 | |||||
| 13 | 2055 x 12100 | ||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 30 | 2055 x 12000 | |||
| 4000 x 12000 | |||||
| 35 | 2055 x 12000 | ||||
| 16 | 2055 x 12100 | ||||
| 4000 x 12000 | |||||
| 3000 x 12000 | 2500 x 10000 | ||||
| 2500 x 12000 | 45 | 2055 x 8000 | |||
| 3460 x 14000 | 3000 x 9000 |
Boiler Quality Sheets and Plates find extensive use in boiler manufacturing, power generation, pressure vessels, and heat exchangers, where high strength and heat resistance are essential. They are perfect for steam boilers, industrial heating systems, furnaces, and chemical process equipment. Additionally, these plates and sheets are utilized in the petrochemical, power, and heavy engineering sectors, delivering reliable performance even under high temperatures and pressure. With excellent weldability and toughness, they are designed to meet the rigorous demands of various industrial applications, ensuring safety and efficiency in every project.
