Travis Steel, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of high-quality Carbon Steel A694 Flanges, specifically crafted for high-pressure and demanding industrial settings. Known for their precision, durability, and strict adherence to international standards, the company guarantees products that consistently deliver quality and long-lasting reliability. With state-of-the-art manufacturing facilities and rigorous quality control measures, Travis Steel produces flanges that are not only dimensionally accurate but also structurally sound and finished to precise specifications. A694 Flanges are highly sought after for their exceptional strength, toughness, and resistance to wear and corrosion, making them perfect for pipelines, pressure vessels, and chemical processing systems.
Typically, Carbon Steel A694 Flanges contain a maximum of 0.28% carbon, 1.00–1.50% manganese, along with trace amounts of sulfur, phosphorus, chromium, and molybdenum. This specific composition results in remarkable tensile strength, excellent ductility, and good impact resistance, ensuring reliable performance even in high-pressure and high-temperature environments. The flanges maintain consistent mechanical properties, toughness, and dimensional stability. Through controlled manufacturing and heat treatment processes, their durability, corrosion resistance, and load-bearing capacity are significantly enhanced, making A694 Flanges ideal for critical industrial, mechanical, and structural applications where safety and performance are crucial.
| Specifications | ASTM A694 / ASME SA694 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI, ASME, BS, DIN, EN etc. |
| Grades | F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60 |
| Size | 1/2″ to 48″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |

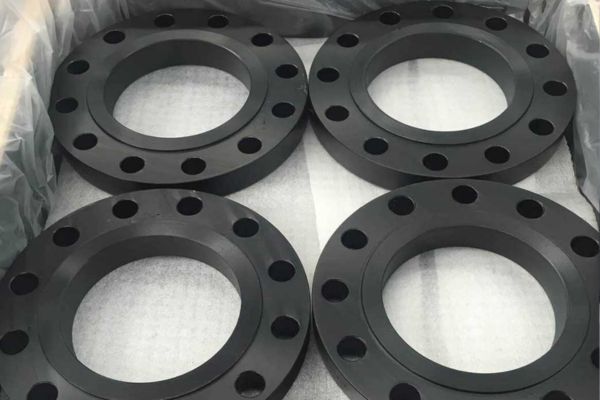

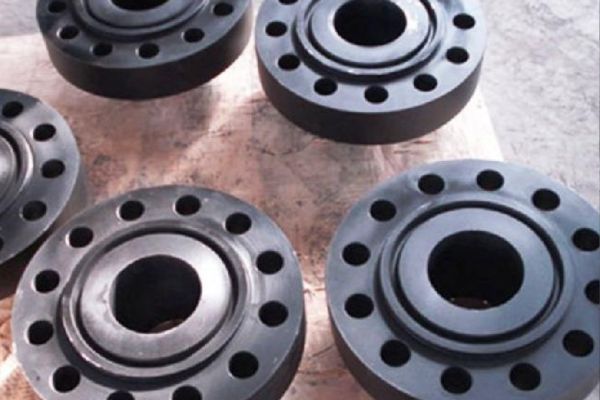

| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Element | F42 Content, % | F52 Content, % | F60 Content, % | F65 Content, % | F70 Content, % |
| Carbon (C) | 0.13~0.20 | 0.16~0.22 | 0.17~0.23 | 0.17~0.23 | 0.06~0.10 |
| Silicon (Si) | 0.20~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.20~0.40 |
| Manganese (Mn) | 1.20~1.60 | 1.10~1.40 | 1.20~1.50 | 1.30~1.60 | 1.10~1.40 |
| Phosphorous (P) | ≤ 0.030 | ≤ 0.025 | ≤ 0.020 | ≤ 0.025 | ≤ 0.020 |
| Sulfur (S) | ≤ 0.020 | ≤ 0.012 | ≤ 0.012 | ≤ 0.015 | ≤ 0.010 |
| Molybdenum (Mo) | 0.20~0.35 | 0.45~0.60 | 0.45~0.65 | 1.20~1.70 | |
| Nickel (Ni) | ≤ 0.30 | ≤ 0.50 | 0.40~1.00 | ≤ 0.30 | 0.20~0.40 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | ≤ 0.30 | ≤ 0.30 |
| Copper (Cu) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
| Vanadium (V) | ≤ 0.050 | 0.02~0.06 | |||
| Niobium (Nb) | 0.025~0.050 | ||||
| Pcm | ≤ 0.25 | ||||
| Carbon Equivalent | ≤ 0.48 | ≤ 0.48 | ≤ 0.48 | ≤ 0.43 | ≤ 0.48 |
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
| MPa | ksi | MPa | ksi | % | |
| A694 F42 FLANGES | 290 | 42 | 415 | 65 | 20 |
| A694 F46 FLANGES | 315 | 46 | 415 | 60 | 20 |
| A694 F48 FLANGES | 330 | 48 | 425 | 62 | 20 |
| A694 F50 FLANGES | 345 | 50 | 440 | 64 | 20 |
| A694 F52 FLANGES | 360 | 52 | 455 | 66 | 20 |
| A694 F56 FLANGES | 385 | 56 | 470 | 68 | 20 |
| A694 F60 FLANGES | 415 | 60 | 515 | 75 | 20 |
| A694 F65 FLANGES | 450 | 65 | 530 | 77 | 20 |
| A694 F70 FLANGES | 485 | 70 | 565 | 82 | 18 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Travis Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A694 Flanges in Canberra, Australia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

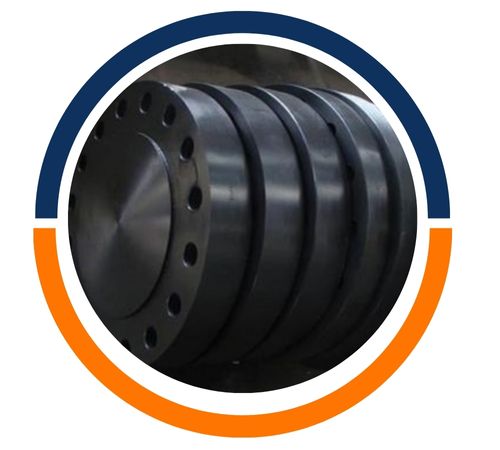

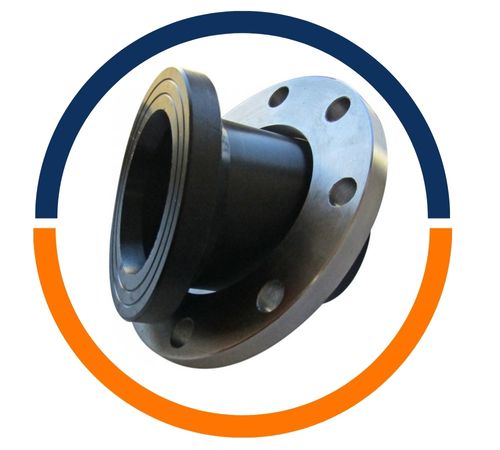

| ASME/ANSI B 16.5 | Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flanges |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck, Blind [Series A & B] Flanges |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck, Slip on, Threaded Flanges |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange |
| TABLE | D, E, F, H |
| DIN Flange | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Carbon Steel A694 Flanges find extensive use in high-pressure pipelines, the oil and gas sector, petrochemical plants, power generation, and industrial piping systems that demand exceptional strength and durability. They are particularly well-suited for valves, pressure vessels, and chemical processing equipment that operate under extreme conditions. Thanks to their outstanding mechanical properties, toughness, and resistance to wear and corrosion, these flanges excel in challenging applications that involve high pressure, temperature fluctuations, and environmental stress. A694 Flanges are the go-to choice for projects that require long-term service and reliability.
