Travis Steel, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of high-quality Carbon Steel Nuts. Known for their impressive strength, precise threading, and long-lasting durability, these nuts are designed to ensure secure and reliable fastening across a range of industrial and structural applications. At Travis Steel, every product is crafted with care, following strict quality control measures and international standards, so you can trust that they deliver long-term performance and safety. Their Carbon Steel Nuts find a home in various industries, including construction, automotive, machinery, and engineering, where they provide exceptional load-bearing capacity, wear resistance, and dependable connections even in tough operational conditions.
These Carbon Steel Nuts are made from premium carbon steel, which contains carefully controlled levels of carbon, manganese, silicon, sulfur, and phosphorus. This specific blend gives them remarkable strength, hardness, and toughness, making them durable under mechanical stress. With outstanding mechanical properties like high tensile strength and wear resistance, these nuts are built to withstand deformation. Their precise threading ensures a secure fit with bolts and fasteners, maintaining reliable connections even when faced with high loads or vibrations. The perfect mix of toughness and ductility makes Carbon Steel Nuts ideal for applications that demand dependable fastening and long-lasting performance.
Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

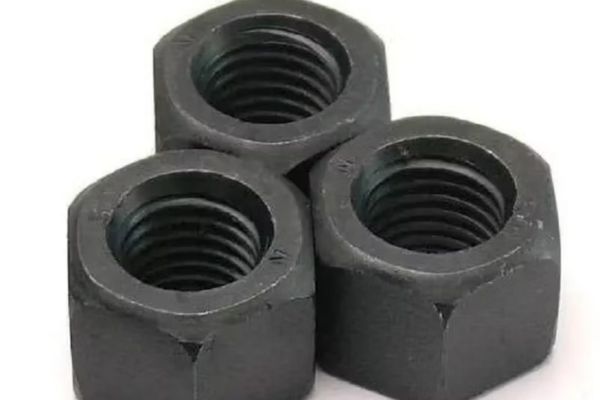

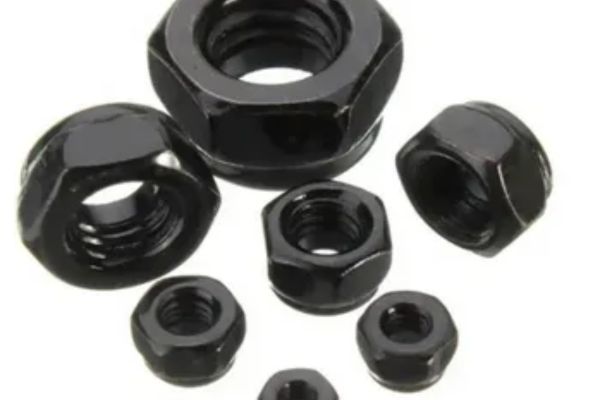

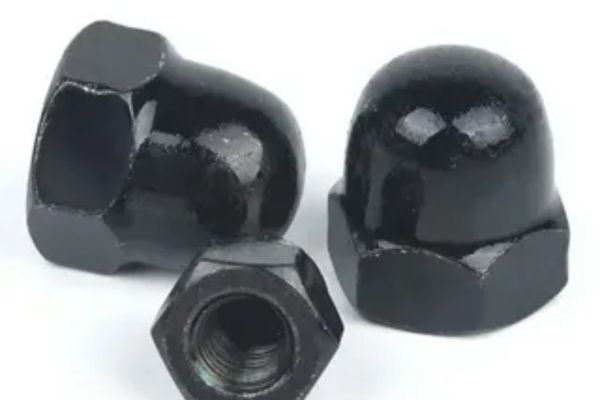

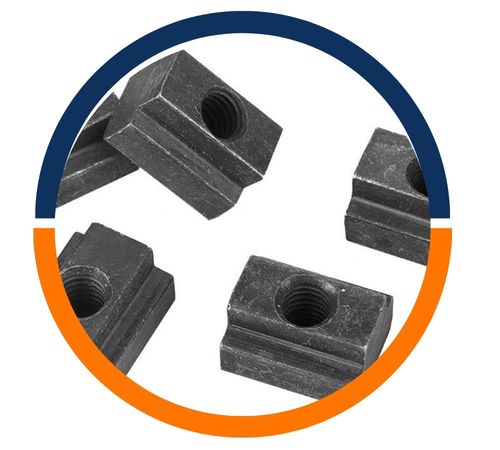

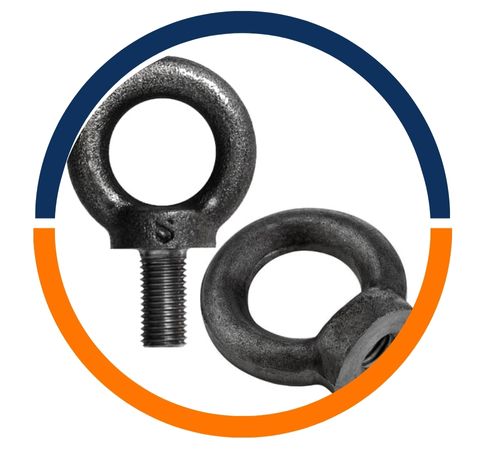

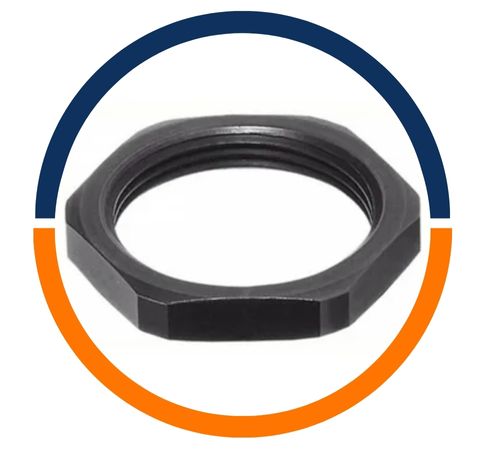

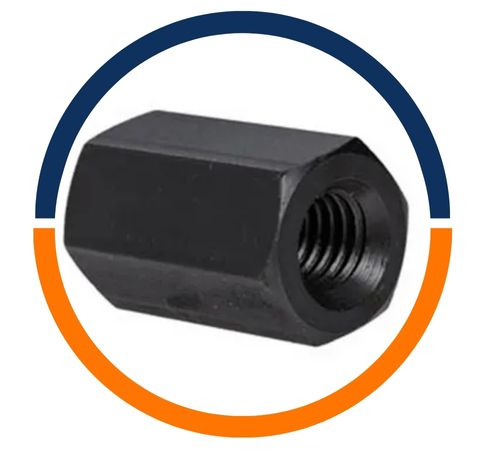

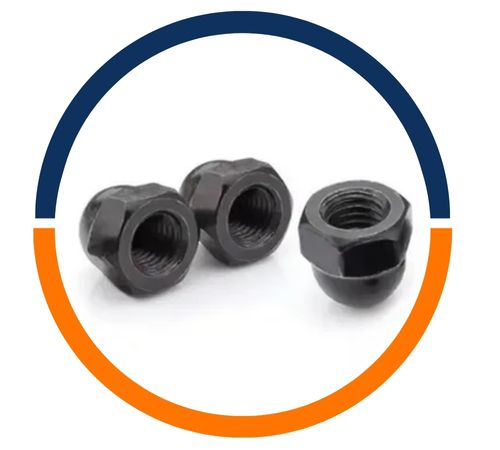

Type : Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Nut in Canberra, Australia. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Nut needs!
| Hex Nut NB | Across Corners | MAX Thickness | MIN Thickness | MAX Across Flats | MIN Across Flats |
|---|---|---|---|---|---|
| M 8 | 14.38 | 6.8 | 6.44 | 13 | 12.73 |
| M 10 | 17.77 | 8.4 | 8.04 | 16 | 15.73 |
| M 12 | 20.03 | 10.8 | 10.37 | 18 | 17.73 |
| M 14 | 23.35 | 12.8 | 12.1 | 21 | 20.67 |
| M 16 | 26.75 | 14.8 | 14.1 | 24 | 23.67 |
| M 18 | 29.56 | 15.8 | 15.1 | 27 | 26.16 |
| M 20 | 32.95 | 18 | 16.9 | 30 | 29.16 |
| M 22 | 37.29 | 19.4 | 18.1 | 34 | 33 |
| M 24 | 39.55 | 21.5 | 20.2 | 36 | 35 |
| M 27 | 45.2 | 23.8 | 22.5 | 41 | 40 |
| M 30 | 50.85 | 26.6 | 24.3 | 46 | 45 |
| M 33 | 55.37 | 28.7 | 27.4 | 50 | 49 |
| M 36 | 60.79 | 31 | 29.4 | 55 | 53.8 |
| M 39 | 66.44 | 33.4 | 31.8 | 60 | 58.8 |
| M 42 | 71.3 | 34 | 32.4 | 65 | 63.1 |
| M 45 | 76.95 | 36 | 34.4 | 70 | 68.1 |
| M 48 | 82.6 | 38 | 39.4 | 75 | 73.1 |
| M 52 | 88.25 | 42 | 40.4 | 80 | 78.1 |
| M 56 | 93.56 | 45 | 43.4 | 85 | 82.8 |
| M 60 | 99.21 | 48 | 46.4 | 90 | 87.8 |
| M 64 | 104.86 | 51 | 49.1 | 95 | 92.8 |
| M 68 | 110.51 | 54 | 52.1 | 100 | 97.8 |
| M 72 x 6 | 116.16 | 58 | 56.1 | 105 | 102.8 |
| M 76 x 6 | 121.81 | 61 | 59.1 | 110 | 107.8 |
| M 80 x 6 | 127.46 | 64 | 62.1 | 115 | 112.8 |
| Nominal or Basic Major Diameter of Nut Thread | Nuts Width Across Flats (F) | Width Across Corners (G) | Thickness of Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | 0.2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 0.226 | 0.212 |
| 5/16 | 0.3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | 0.273 | 0.258 |
| 3/8 | 0.3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | 0.337 | 0.320 |
| 7/16 | 0.4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | 0.385 | 0.365 |
| 1/2 | 0.5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | 0.448 | 0.427 |
| 9/16 | 0.5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | 0.496 | 0.473 |
| 5/8 | 0.6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | 0.559 | 0.535 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | 0.665 | 0.617 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | 0.776 | 0.724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | 0.887 | 0.831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | 0.999 | 0.939 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 1-1/16 | 1.094 | 1.030 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.317 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.456 | 2-3/8 | 2.431 | 2.319 |
| 3 | 3.000 | 4-1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2-19/32 | 2.654 | 2.534 |
You’ll find Carbon Steel Nuts in various industries that need secure and reliable fastening solutions. They’re commonly used in construction projects, automotive assembly, machinery fabrication, pipelines, structural frameworks, and heavy engineering equipment. Additionally, they play a role in metal fabrication, furniture assembly, and industrial manufacturing, where mechanical stability and durability are crucial. Thanks to their precision threading and robust composition, Carbon Steel Nuts guarantee leak-proof, vibration-resistant, and enduring connections. With Travis Steel’s Carbon Steel Nuts, you can count on reliable performance that stands the test of time.
