Travis Steel, located in Canberra, Australia, is a reliable manufacturer and supplier of top-notch Carbon Steel Screws. Known for their impressive strength, durability, and precise threading, these screws are designed to ensure dependable fastening across a variety of industrial and structural applications. At Travis Steel, they take pride in their careful manufacturing processes, rigorous quality control, and adherence to international standards, all aimed at delivering products that promise both performance and longevity. Their Carbon Steel Screws find a home in numerous industries, including construction, automotive, machinery, and engineering, providing exceptional mechanical stability, wear resistance, and trustworthy fastening solutions even in the toughest operational conditions.
These Carbon Steel Screws are crafted from high-quality carbon steel, which contains carefully controlled levels of carbon, manganese, silicon, sulfur, and phosphorus to guarantee strength, hardness, and toughness. They boast remarkable mechanical properties, such as high tensile and shear strength, wear resistance, and fatigue resistance. Thanks to their sturdy composition, they can handle high torque, mechanical loads, and environmental stress without bending or breaking. The perfect balance of hardness and ductility ensures that they engage threads reliably and secure fastenings. Carbon Steel Screws consistently deliver performance in applications that demand durability, strength, and long-lasting reliability.
Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

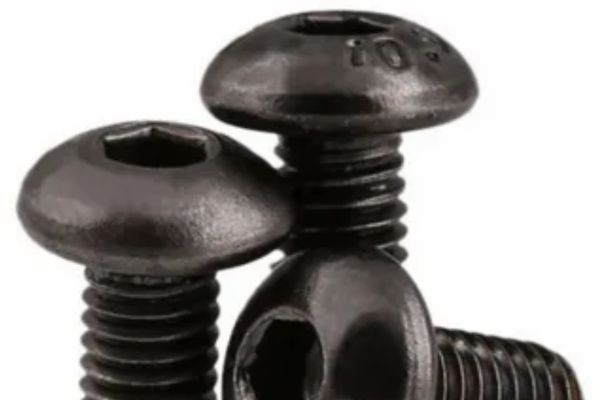

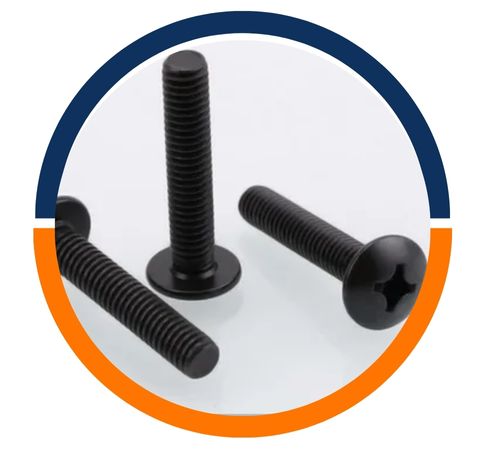

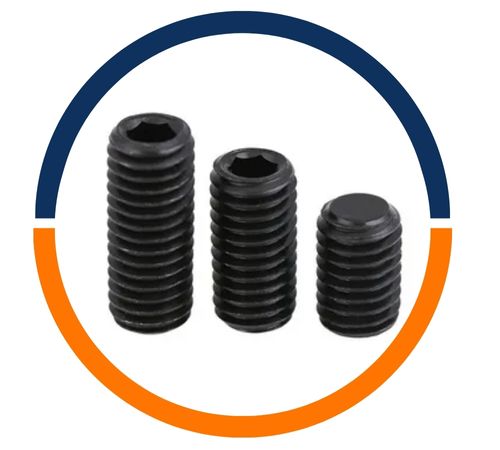

Type : Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Screw in Canberra, Australia. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Screw needs!
| Screw Nom. Size Thread Pitch | Body Diameter D | Head Diameter A | Head Height H | Chamfer or Radius S | Hexagon Socket Size J | Spline Socket Sizea M | Key Engagement T | Transition Dia. B | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Nom. | Nom. | Min | Max | |
| M1.6 × 0.35 | 1.60 | 1.46 | 3.00 | 2.87 | 1.60 | 1.52 | 0.16 | 1.5 | 1.829 | 0.80 | 2.0 |
| M2 × 0.4 | 2.00 | 1.86 | 3.80 | 3.65 | 2.00 | 1.91 | 0.20 | 1.5 | 1.829 | 1.00 | 2.6 |
| M2.5 × 0.45 | 2.50 | 2.36 | 4.50 | 4.33 | 2.50 | 2.40 | 0.25 | 2.0 | 2.438 | 1.25 | 3.1 |
| M3 × 0.5 | 3.00 | 2.86 | 5.50 | 5.32 | 3.00 | 2.89 | 0.30 | 2.5 | 2.819 | 1.50 | 3.6 |
| M4 × 0.7 | 4.00 | 3.82 | 7.00 | 6.80 | 4.00 | 3.88 | 0.40 | 3.0 | 3.378 | 2.00 | 4.7 |
| M5 × 0.8 | 5.00 | 4.82 | 8.50 | 8.27 | 5.00 | 4.86 | 0.50 | 4.0 | 4.648 | 2.50 | 5.7 |
| M6 × 1 | 6.00 | 5.82 | 10.00 | 9.74 | 6.00 | 5.85 | 0.60 | 5.0 | 5.486 | 3.00 | 6.8 |
| M8 × 1.25 | 8.00 | 7.78 | 13.00 | 12.70 | 8.00 | 7.83 | 0.80 | 6.0 | 7.391 | 4.00 | 9.2 |
| M10 × 1.5 | 10.00 | 9.78 | 16.00 | 15.67 | 10.00 | 9.81 | 1.00 | 8.0 | … | 5.00 | 11.2 |
| M12 × 1.75 | 12.00 | 11.73 | 18.00 | 17.63 | 12.00 | 11.79 | 1.20 | 10.0 | … | 6.00 | 14.2 |
| M14 × 2b | 14.00 | 13.73 | 21.00 | 20.60 | 14.00 | 13.77 | 1.40 | 12.0 | … | 7.00 | 16.2 |
| M16 × 2 | 16.00 | 15.73 | 24.00 | 23.58 | 16.00 | 15.76 | 1.60 | 14.0 | … | 8.00 | 18.2 |
| M20 × 2.5 | 20.00 | 19.67 | 30.00 | 29.53 | 20.00 | 19.73 | 2.00 | 17.0 | … | 10.00 | 22.4 |
| M24 × 3 | 24.00 | 23.67 | 36.00 | 35.48 | 24.00 | 23.70 | 2.40 | 19.0 | … | 12.00 | 26.4 |
| M30 × 3.5 | 30.00 | 29.67 | 45.00 | 44.42 | 30.00 | 29.67 | 3.00 | 22.0 | … | 15.00 | 33.4 |
| M36 × 4 | 36.00 | 35.61 | 54.00 | 53.37 | 36.00 | 35.64 | 3.60 | 27.0 | … | 18.00 | 39.4 |
| M42 × 4.5 | 42.00 | 41.61 | 63.00 | 62.31 | 42.00 | 41.61 | 4.20 | 32.0 | … | 21.00 | 45.6 |
| M48 × 5 | 48.00 | 47.61 | 72.00 | 71.27 | 48.00 | 47.58 | 4.80 | 36.0 | … | 24.00 | 52.6 |
| Screw Size | Body Dia | Hex Key Size | Head Height | Head Dia | Maximum Thread Length | Minimum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 0.05 | 0.06 | 0.096 | 5/8 | 3/8 |
| No. 1 | 0.073 | 1/16 | 0.073 | 0.118 | 7/8 | 3/8 |
| No. 2 | 0.086 | 5/64 | 0.086 | 0.14 | 7/8 | 1/2 |
| No. 3 | 0.099 | 5/64 | 0.099 | 0.161 | 7/8 | 1/2 |
| No. 4 | 0.112 | 3/32 | 0.112 | 0.183 | 11/8 | 11/16 |
| No. 5 | 0.125 | 3/32 | 0.125 | 0.205 | 1 | 11/16 |
| No. 6 | 0.138 | 7/64 | 0.138 | 0.226 | 11/8 | 11/16 |
| No. 8 | 0.164 | 9/64 | 0.164 | 0.27 | 11/4 | 3/4 |
| No. 10 | 0.19 | 5/32 | 0.19 | 0.312 | 13/8 | 15/16 |
| No. 12 | 0.216 | 5/32 | 0.216 | 0.345 | 11/4 | 15/16 |
| 1/4 | 0.250 | 3/16 | 1/4 | 3/8 | 11/2 | 15/16 |
| 5/16 | 0.3125 | 1/4 | 5/16 | 15/32 | 1-3/4 | 1-1/16 |
| 3/8 | 0.375 | 5/16 | 3/8 | 9/16 | 2 | 1-3/16 |
| 7/16 | 0.438 | 3/8 | 7/16 | 21/32 | 2-1/4 | 13/16 |
| 1/2 | 0.500 | 3/8 | 1/2 | 3/4 | 2-1/2 | 1-3/8 |
| 9/16 | 0.5625 | 7/16 | 9/16 | 27/32 | 2-7/16 | 1-5/8 |
| 5/8 | 0.625 | 1/2 | 5/8 | 15/16 | 3 | 1-5/8 |
| 3/4 | 0.750 | 5/8 | 3/4 | 11/8 | 3-1/2 | 1-7/8 |
| 7/8 | 0.875 | 3/4 | 7/8 | 15/16 | 3-3/4 | 2-1/16 |
| 1 | 1.000 | 3/4 | 1 | 11/2 | 4-1/2 | 2-1/4 |
| 1-1/8 | 1.125 | 7/8 | 1-1/8 | 111/16 | 4-21/32 | 2-13/16 |
| 1-1/4 | 1.250 | 7/8 | 1-1/4 | 17/8 | 5-3/32 | 3-1/8 |
| 1-1/2 | 1.500 | 1 | 1-1/2 | 21/4 | 6-5/64 | 3-3/4 |
| 1-3/4 | 1.750 | 11/4 | 1-3/4 | 25/8 | 7-1/8 | 4-3/8 |
| 2 | 2.000 | 11/2 | 2 | 3 | 8-7/64 | 5 |
You’ll find Carbon Steel Screws widely used in industries that need strong and dependable fastening solutions. They’re commonly found in construction, automotive assembly, machinery fabrication, pipelines, structural frameworks, and industrial equipment. Additionally, they play a role in furniture manufacturing, metal fabrication, and heavy engineering projects where high tensile strength and corrosion resistance are crucial. With their precise threading, these screws ensure secure connections, minimizing the risk of loosening due to vibration or load. Travis Steel’s Carbon Steel Screws offer a durable, efficient, and cost-effective fastening solution for a variety of needs.
