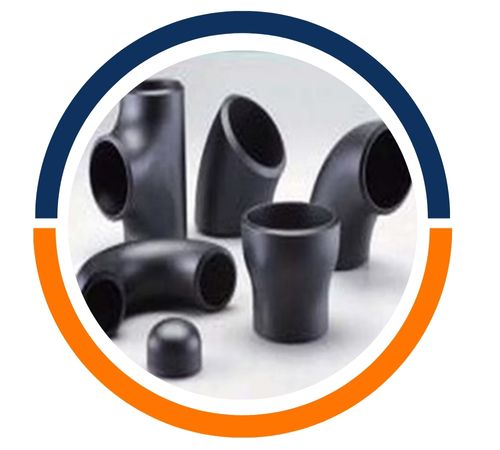

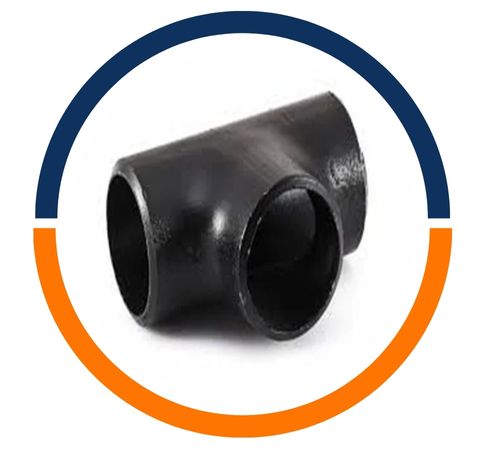

Travis Steel, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality Carbon Steel WPHY 60 Pipe Fittings. These fittings are expertly crafted to deliver exceptional strength, durability, and reliability, making them perfect for high-pressure and high-temperature piping systems. Each fitting is precision-engineered to meet international standards, ensuring they boast excellent dimensional accuracy, corrosion resistance, and consistent mechanical performance. Designed for critical industrial applications, Carbon Steel WPHY 60 Pipe Fittings are built to last and perform reliably over time. With a strong focus on quality, innovation, and customer satisfaction, Travis Steel is your go-to source for dependable steel solutions across oil and gas, petrochemical, power generation, and industrial piping systems.
These fittings are primarily made from carbon, manganese, phosphorus, sulfur, and a few trace alloying elements, all of which contribute to their high tensile strength, toughness, and outstanding mechanical performance. They offer impressive yield strength, impact resistance, and dimensional stability, even under high pressure and temperature conditions. Thanks to their chemical makeup, these fittings ensure consistent weldability, corrosion resistance, and structural reliability. WPHY 60 steel strikes a perfect balance between durability and mechanical efficiency, making these pipe fittings ideal for demanding industrial applications where safety, reliability, and long-term performance are non-negotiable.
| Specification: | ASTM A860 WPHY 60 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

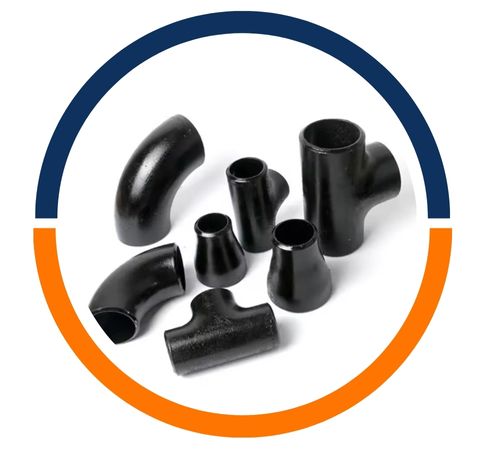

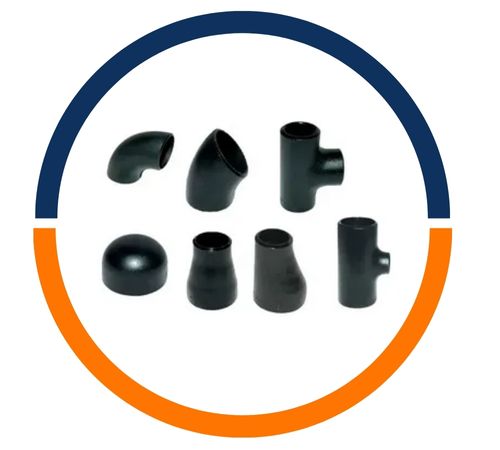

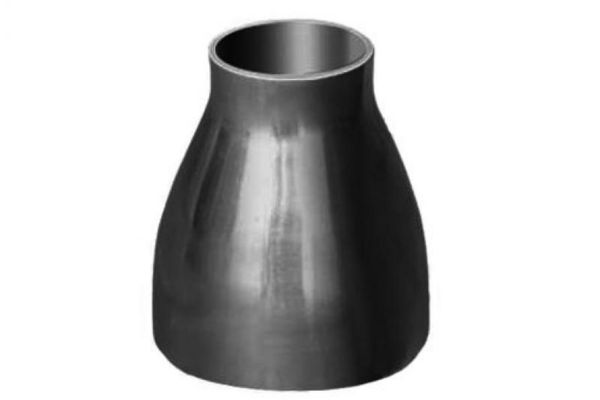

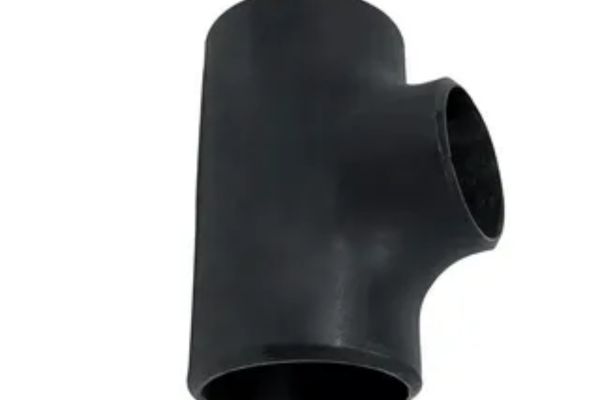

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 60 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| ASTM A860 WPHY 60 Fittings | 415 | 515-690 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

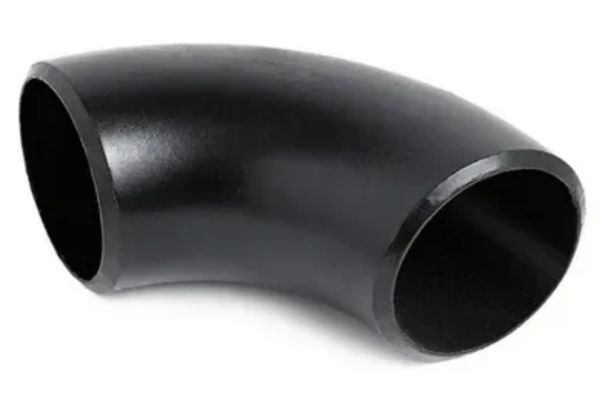

| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Travis Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 60 Pipe Fittings products in Canberra, Australia. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel WPHY 60 Pipe Fittings find their place in various industries that require robust and durable piping components. They’re commonly used in oil and gas pipelines, petrochemical plants, refineries, and power generation facilities. Additionally, you’ll find them in high-pressure steam lines, chemical processing, and industrial piping systems where toughness, corrosion resistance, and reliability are crucial. With their superior mechanical properties, precise dimensions, and long service life, these fittings ensure safe and efficient operation even in the toughest conditions. Travis Steel’s Carbon Steel WPHY 60 Pipe Fittings are truly a reliable choice for any industrial application.
