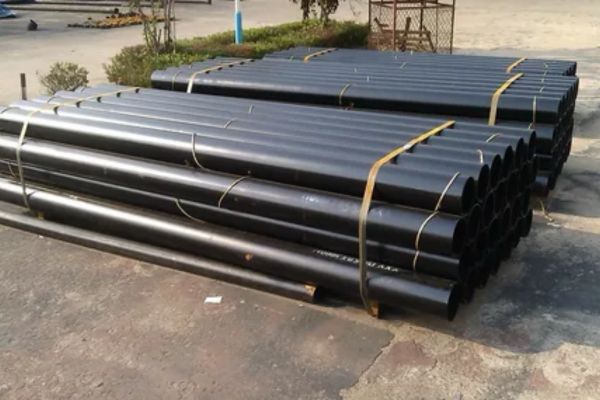

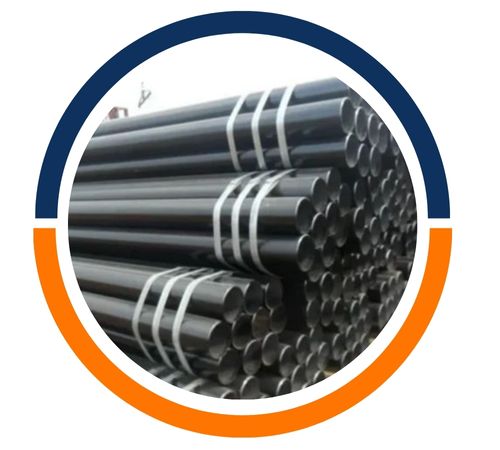

Travis Steel, a reliable manufacturer and supplier located in Canberra, Australia, specializes in top-notch CDS Tubing that’s built for exceptional strength, durability, and precision across a variety of industrial uses. These high-performance steel tubes are crafted to meet rigorous international standards, guaranteeing outstanding dimensional accuracy, surface finish, and consistent mechanical performance. Designed for applications that demand high tensile strength, corrosion resistance, and structural reliability, CDS Tubing is a go-to choice. With a strong commitment to quality, innovation, and customer satisfaction, Travis Steel delivers robust steel solutions for sectors like automotive, construction, oil and gas, and mechanical engineering, ensuring dependable and long-lasting performance.
The composition of CDS Tubing primarily includes carbon, manganese, and a few trace alloying elements, which together enhance its tensile strength, toughness, and durability. These tubes showcase impressive yield and tensile strength, good corrosion resistance, and remarkable dimensional stability even under mechanical stress and pressure. Thanks to its chemical makeup and precise manufacturing process, CDS Tubing consistently delivers reliable mechanical properties, excellent weldability, and overall dependability. It’s perfect for critical applications where structural integrity, strength, and resistance to wear and deformation are crucial, making it an ideal option for industrial, construction, and engineering projects.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018Â c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | Â 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 50,000 | 40 | B-57 | Â 97 |
| As-Drawn | Â 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | Â 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020Â C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | Â 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | Â 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | Â 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026Â C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | Â 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | Â 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | Â 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | Â 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | Â 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | Â | Â | 1.2 | 0.27 | Â | Â | 1.5 | 0.33 | Â | Â | 1.73 | 0.37 | Â | Â | Â | Â |
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | Â | Â | 1.65 | 0.49 | Â | Â | 2 | 0.58 | Â | Â | 2.24 | 0.64 | Â | Â | Â | Â |
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | Â | Â | 1.65 | 0.63 | Â | Â | 2 | 0.74 | Â | Â | 2.31 | 0.87 | Â | Â | Â | Â |
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | Â | Â | 2.77 | 1.29 | Â | Â | Â | Â |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | Â | Â | 2.87 | 1.71 | Â | Â | Â | Â |
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | Â | Â | 3.38 | 2.54 | Â | Â | Â | Â |
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | Â | Â | 3.56 | 3.44 | Â | Â | Â | Â |
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | Â | Â | 3.68 | 4.11 | Â | Â | Â | Â |
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | Â | Â | 3.91 | 5.52 | Â | Â | Â | Â |
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | Â | Â | 5.16 | 8.77 | Â | Â | Â | Â |
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | Â | Â | 5.49 | 11.47 | Â | Â | Â | Â |
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | Â | Â | 5.74 | 13.78 | Â | Â | Â | Â |
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | Â | Â | 6.02 | 6.32 | Â | Â | Â | Â |
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | Â | Â | 6.55 | 2210 | Â | Â | Â | Â |
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | Â | Â | 7.11 | 28.69 | Â | Â | Â | Â |
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | Â | Â | 10.81 | 53.9 |
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | Â | Â | 12.2 | 82.8 |
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | Â | Â | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 |
| 400 | 16 | 406.4 | 4.19 | 42.2 | Â | Â | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 |
| 450 | 18 | 457.2 | 4.19 | 47.46 | Â | Â | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 |
| 500 | 2C | 508 | 4.78 | 60.23 | Â | Â | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 |
| 550 | 22 | 558.8 | 4.78 | 65.95 | Â | Â | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 |
| 600 | 24 | 609.6 | 5.54 | 83.8 | Â | Â | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 |
| 650 | 26 | 660.4 | Â | Â | Â | Â | Â | Â | 7.92 | 129.4 | 12.7 | 205.97 | Â | Â | 9.53 | 155.32 | Â | Â | Â | Â |
| 700 | 28 | 711.2 | Â | Â | Â | Â | Â | Â | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | Â | Â | Â | Â |
| 750 | 3C | 762 | 6.35 | 120.15 | Â | Â | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | Â | Â | Â | Â |
| 800 | 32 | 812.8 | Â | Â | Â | Â | Â | Â | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | Â | Â |
| 850 | 34 | 863.6 | Â | Â | Â | Â | Â | Â | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | Â | Â |
| 900 | 36 | 914.4 | Â | Â | Â | Â | Â | Â | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | Â | |
CDS Tubing finds its place in various industries that require high-strength, durable, and corrosion-resistant steel tubes. You’ll often see it in hydraulic systems, automotive components, mechanical assemblies, oil and gas pipelines, and structural supports. It’s also widely used in construction, heavy machinery, and industrial equipment where precision, reliability, and a long service life are key. The tubes’ outstanding mechanical properties, dimensional accuracy, and resistance to wear and corrosion ensure safe, efficient, and long-lasting performance.
