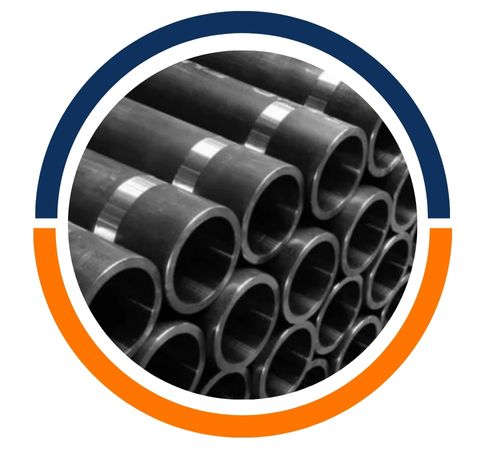

Travis Steel is a reputable manufacturer and supplier located in Canberra, Australia, focusing on top-notch EN10305-2 and EN10305-3 ERW (Electric Resistance Welded) Tubing. Our products are crafted for strength, precision, and reliability. We use high-quality carbon and alloy steels, employing advanced welding and forming techniques to ensure our ERW tubes have consistent dimensions, a fantastic surface finish, and outstanding mechanical performance. Built to meet international standards, these tubes excel in pressure resistance, weldability, and durability. At Travis Steel, we’re dedicated to providing precision-engineered, high-performance ERW tubing, making our EN10305-2 and EN10305-3 Tubing perfect for automotive, hydraulic, industrial machinery, and structural applications that demand dependable and cost-effective steel solutions.
The EN10305-2 and EN10305-3 ERW Tubing primarily consists of carbon steel or low-alloy steel, with carefully balanced amounts of manganese, silicon, and trace elements to boost strength and toughness. These tubes typically showcase a tensile strength of 360–550 MPa and a yield strength between 220–400 MPa, along with good ductility, toughness, and weldability. EN10305-2 tubing is known for its cold-drawn precision, while EN10305-3 offers both cold-finished and hot-rolled options, ensuring consistent mechanical properties, dimensional accuracy, and a smooth surface finish that’s ideal for various industrial and structural uses.
| Steel Name | Steel Number | C max, % max. | Si max, % max. | Mn max, % max. | P max, % max. | S max, % max. |
| E155 | 1.0033 | 0,11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0,15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0,17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0,21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0,22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Name | Steel Grade | Cold Drawn / Hard | Cold Drawn / Soft | Cold Drawn & stress relieved | Annealed | Normalised | |||||||
| Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | A, % | Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
||
|
E155 |
1.0033 |
400 |
6 |
350 |
10 |
350 |
245 |
18 |
260 |
28 |
270 – 410 |
155 |
28 |
|
E195 |
1.0034 |
420 |
6 |
370 |
10 |
370 |
260 |
18 |
290 |
28 | 300 – 440 |
195 |
28 |
|
E235 |
1.0308 |
490 |
6 |
440 |
10 |
440 |
325 |
14 |
315 |
25 | 340 – 480 |
235 |
25 |
|
E275 |
1.0225 |
560 |
5 |
510 |
8 |
510 |
375 |
12 |
390 |
21 |
410 – 550 |
275 |
21 |
|
E355 |
1.0580 |
640 |
4 |
590 |
6 |
590 |
435 |
10 |
450 |
22 | 490 – 630 |
355 |
22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-2 / EN10305-3 ERW Tubing in Canberra, Australia. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-2 / EN10305-3 ERW Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
EN10305-2 and EN10305-3 ERW Tubing are widely utilized in industries that require precision, strength, and durability. They find common applications in automotive chassis, hydraulic and pneumatic systems, structural assemblies, machinery components, and general engineering tasks. Thanks to their excellent weldability, dimensional accuracy, and mechanical performance, they are perfect for fluid conveyance, load-bearing structures, and industrial frameworks. With Travis Steel’s EN10305-2 and EN10305-3 ERW Tubing, you can count on reliable performance, a long service life, and consistent quality.
