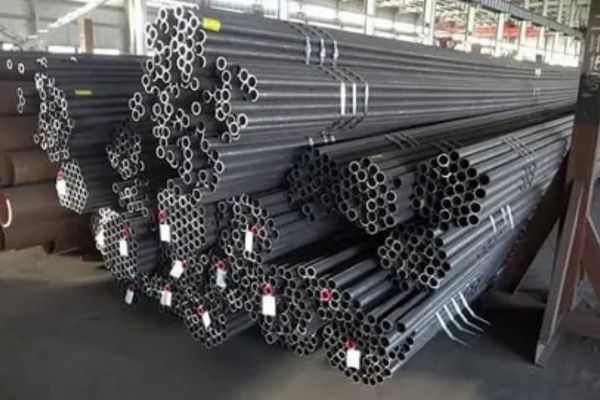

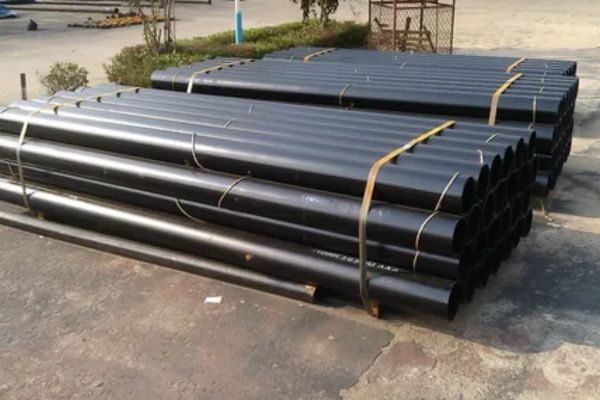

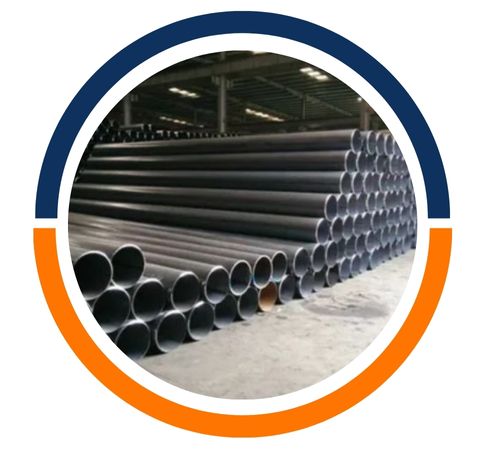

Travis Steel, a reliable manufacturer and supplier located in Canberra, Australia, specializes in high-quality HFS Tubing that’s built for strength, durability, and precision across a variety of industrial applications. These top-notch steel tubes are crafted to meet strict international standards, guaranteeing excellent dimensional accuracy, a smooth surface finish, and consistent mechanical performance. HFS Tubing is perfect for situations that demand high tensile strength, corrosion resistance, and structural reliability. With a strong commitment to quality, innovation, and customer satisfaction, Travis Steel provides robust steel solutions for industries like automotive, construction, oil and gas, and mechanical engineering, ensuring long-lasting and dependable performance.
The HFS Tubing is mainly made up of carbon, manganese, and a few trace alloying elements that boost its tensile strength, toughness, and durability. These tubes showcase impressive yield and tensile strength, good corrosion resistance, and outstanding dimensional stability even under pressure and mechanical stress. Thanks to its chemical composition and precise manufacturing process, HFS Tubing consistently delivers reliable mechanical properties, weldability, and durability. It’s designed for high-performance applications where structural integrity, strength, and resistance to wear and deformation are crucial, making it a fantastic choice for industrial and engineering projects.
| Grade | Chemistry         %   | Yield | Tensile | Elongation | Typical Hardness | |
|               | PSI | PSI | % in 2″ section | Min | ||
| 1020 | Carbon | 0.18-0.23 | 32,000 | 50,000 | 25 | B-55 |
| MN | 0.30-0.60 | |||||
| P | 0.040 Max | |||||
| S | 0.050 Max | |||||
| 1026 | Carbon | 0.220-0.280 | 35,000 | 55,000 | 25 | B-60 |
| MN | 0.600-0.900 | |||||
| P | 0.040 Max | |||||
| S | 0.050 Max | |||||
| Wall Thickness Range as a Percent of Outside Diameter | % Over and Under Nominal Wall | |||||||
| OD up to 2.999″ | OD 3.00″- 5.999″ | OD 6.00″- 10.750″ | ||||||
| Walls Under 15% of nominal O.D. | 12.50% | 10.00% | 10.00% | |||||
| Walls Over 15% of nominal O.D. | 10.00% | 7.50% | 10.00% | |||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | Â | Â | 1.2 | 0.27 | Â | Â | 1.5 | 0.33 | Â | Â | 1.73 | 0.37 | Â | Â | Â | Â |
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | Â | Â | 1.65 | 0.49 | Â | Â | 2 | 0.58 | Â | Â | 2.24 | 0.64 | Â | Â | Â | Â |
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | Â | Â | 1.65 | 0.63 | Â | Â | 2 | 0.74 | Â | Â | 2.31 | 0.87 | Â | Â | Â | Â |
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | Â | Â | 2.77 | 1.29 | Â | Â | Â | Â |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | Â | Â | 2.87 | 1.71 | Â | Â | Â | Â |
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | Â | Â | 3.38 | 2.54 | Â | Â | Â | Â |
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | Â | Â | 3.56 | 3.44 | Â | Â | Â | Â |
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | Â | Â | 3.68 | 4.11 | Â | Â | Â | Â |
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | Â | Â | 3.91 | 5.52 | Â | Â | Â | Â |
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | Â | Â | 5.16 | 8.77 | Â | Â | Â | Â |
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | Â | Â | 5.49 | 11.47 | Â | Â | Â | Â |
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | Â | Â | 5.74 | 13.78 | Â | Â | Â | Â |
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | Â | Â | 6.02 | 6.32 | Â | Â | Â | Â |
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | Â | Â | 6.55 | 2210 | Â | Â | Â | Â |
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | Â | Â | 7.11 | 28.69 | Â | Â | Â | Â |
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | Â | Â | 10.81 | 53.9 |
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | Â | Â | 12.2 | 82.8 |
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | Â | Â | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 |
| 400 | 16 | 406.4 | 4.19 | 42.2 | Â | Â | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 |
| 450 | 18 | 457.2 | 4.19 | 47.46 | Â | Â | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 |
| 500 | 2C | 508 | 4.78 | 60.23 | Â | Â | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 |
| 550 | 22 | 558.8 | 4.78 | 65.95 | Â | Â | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 |
| 600 | 24 | 609.6 | 5.54 | 83.8 | Â | Â | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 |
| 650 | 26 | 660.4 | Â | Â | Â | Â | Â | Â | 7.92 | 129.4 | 12.7 | 205.97 | Â | Â | 9.53 | 155.32 | Â | Â | Â | Â |
| 700 | 28 | 711.2 | Â | Â | Â | Â | Â | Â | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | Â | Â | Â | Â |
| 750 | 3C | 762 | 6.35 | 120.15 | Â | Â | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | Â | Â | Â | Â |
| 800 | 32 | 812.8 | Â | Â | Â | Â | Â | Â | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | Â | Â |
| 850 | 34 | 863.6 | Â | Â | Â | Â | Â | Â | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | Â | Â |
| 900 | 36 | 914.4 | Â | Â | Â | Â | Â | Â | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | Â | |
HFS Tubing finds its place in various industries that need strong, durable, and corrosion-resistant tubes. You’ll often see it in hydraulic systems, automotive parts, mechanical assemblies, oil and gas pipelines, and structural supports. It’s also widely used in construction, heavy machinery, and industrial equipment where precision, reliability, and a long service life are key. The tubes’ excellent mechanical properties, precise dimensions, and resistance to wear and corrosion ensure safe, efficient, and long-lasting performance. Travis Steel’s HFS Tubing is truly a standout choice for those demanding the best in their projects.
Travis Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Canberra, Australia.
