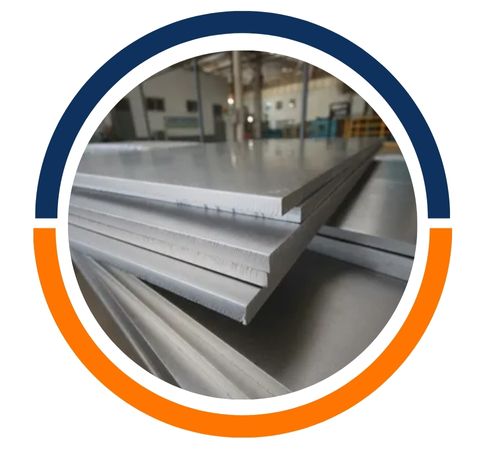

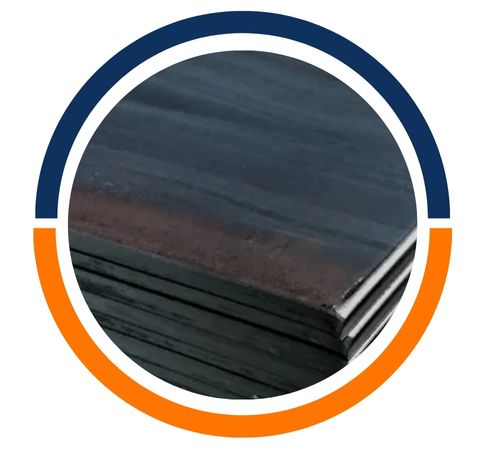

Travis Steel is a trusted manufacturer and supplier located in Canberra, Australia, focusing on **S355J2G3 Steel Sheets and Plates** that are perfect for structural and engineering needs. Known for their impressive strength, toughness, and weldability, these plates are crafted to meet international quality standards. Travis Steel is committed to precision manufacturing, ensuring a superior surface finish and dimensional accuracy to cater to various industrial demands. The S355J2G3 Steel Sheets and Plates deliver reliable performance even in tough conditions, making them a go-to choice for construction, infrastructure, machinery, and equipment manufacturing projects both in Australia and around the world, where structural integrity and durability are crucial.
**S355J2G3 Steel Sheets and Plates** are made up of carbon, manganese, silicon, phosphorus, and sulfur, along with micro-alloying elements. This unique blend gives them excellent tensile and yield strength, good impact resistance, and enhanced toughness, particularly in low temperatures. The material is also known for its good weldability, machinability, and formability without the need for preheating. S355J2G3 steel adheres to structural steel standards, striking a balance between strength and ductility. These characteristics make it ideal for a wide array of industrial and structural applications that require robust and long-lasting steel components with consistent mechanical performance.
| Item | S355J2G3 – Offshore & Structural Steel Plates |
|---|---|

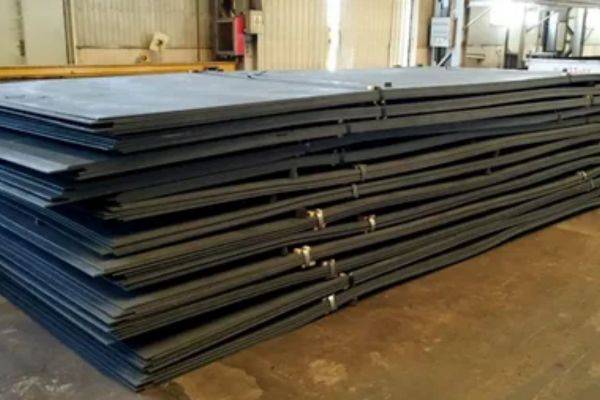

| Technique | hot rolled |
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm or as custom’s request |
| Standard | EN 10025-2:2004 |
| Material | S355J2G3 Steel Plates, En 10025-2 Steel Plate |
| Material | Si | Mn | Ni | C | Al | P | Cu | Cr | S | CEQ |
| DIN 1.0570 | 0.55 max. | 1.60 max. | 0.30 max. | 0.20 max. | 0.020 max. | 0.035 max. | 0.30 max. | 0.30 max. | 0.035 max. | 0.45 max. |
| Grade | Tensile(MPa) | (Mpa) Min Yield Strength | Elongation(%) | Thickness (mm) | Min Impact Energy | |
| DIN 1.0570 | ||||||
| 450-600 Mpa | 285 -295Mpa | 18% | 101 -200 | -20 | 27J | |
| 450-630 Mpa | 315 -355 Mpa | 18-20% | 8 -100 | -20 | 27J | |
| 450-600 Mpa | 275 Mpa | 17% | 201 -400 | -20 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 4.7 – 51.0 | Thickness (milimeter) |
|---|---|
| 0.47 (0.70) | Max CET(CEV) |
| 0.40 (0.59) | Typ CET(CEV) |
| Plate Thickness (mm) | Weight (kg/m2) |
| 1.06 mm | 12.06 |
| 2.00 mm | 15.07 |
| 2.05 mm | 19.06 |
| 3 mm | 23.06 |
| 3.02 mm | 25.01 |
| 4 mm | 31.04 |
| 5 mm | 39.03 |
| 6 mm | 47.01 |
| 8 mm | 62.08 |
| 10 mm | 78.05 |
| 12.05 mm | 98.01 |
| 15 mm | 118 |
| 20 mm | 157 |
| 22.05 mm | 177 |
| 25 mm | 196 |
| 30 mm | 236 |
| 32 mm | 251 |
| 35 mm | 275 |
| 40 mm | 314 |
| 45 mm | 353 |
| 50 mm | 393 |
| 55 mm | 432 |
| 60 mm | 471 |
| 65 mm | 510 |
| 70 mm | 550 |
| 75 mm | 589 |
| 80 mm | 628 |
| 90 mm | 707 |
| 100 mm | 785 |
| 110 mm | 864 |
| 120 mm | 942 |
| 130 mm | 1051 |
| 150 mm | 1178 |
| 160 mm | 1256 |
| 180 mm | 1413 |
| 200 mm | 1570 |
| 250 mm | 1963 |
| length x Width | Thickness | Mass per Sq m | Length x Width | Thickness | Mass per Sq m | |
|---|---|---|---|---|---|---|
| milimeter | milimeter | Kg/m2 | milimeter | milimeter | Kg/m2 | |
| 2000 x 1000 | 3 | 23.055 | 2000 x 1000 | 30.000 | 235.050 | |
| 2500 x 1250 | 3 | 23.055 | 2500 x 1250 | 30.000 | 235.050 | |
| 3000 x 1500 | 3 | 23.055 | 3000 x 1500 | 30.000 | 235.050 | |
| 3660 x 1830 | 3 | 23.055 | 4000 x 2000 | 30.000 | 235.050 | |
| 4000 x 2000 | 3 | 23.055 | 5000 x 1250 | 30.000 | 235.050 | |
| 2000 x 1000 | 4 | 31.040 | 5000 x 2500 | 30.000 | 235.050 | |
| 2500 x 1250 | 4 | 31.040 | 6000 x 2500 | 30.000 | 235.050 | |
| 3000 x 1500 | 4 | 31.040 | 10000 x 2500 | 30.000 | 235.050 | |
| 3660 x 1830 | 4 | 31.040 | 2000 x 1000 | 32.000 | 251.020 | |
| 2000 x 1000 | 5 | 39.025 | 2500 x 1250 | 32.000 | 251.020 | |
| 2500 x 1250 | 5 | 39.025 | 3000 x 1500 | 32.000 | 251.020 | |
| 3000 x 1500 | 5 | 39.025 | 4000 x 2000 | 32.000 | 251.020 | |
| 3660 x 1830 | 5 | 39.025 | 5000 x 2500 | 32.000 | 251.020 | |
| 4000 x 1750 | 5 | 39.025 | 2500 x 1250 | 35.000 | 274.075 | |
| 4000 x 1830 | 5 | 39.025 | 3000 x 1500 | 35.000 | 274.075 | |
| 4000 x 2000 | 5 | 39.025 | 4000 x 2000 | 35.000 | 274.075 | |
| 6000 x 2000 | 5 | 39.025 | 2000 x 1000 | 40.000 | 314.000 | |
| 2500 x 1250 | 6 | 47.010 | 2500 x 1250 | 40.000 | 314.000 | |
| 3000 x 1500 | 6 | 47.010 | 3000 x 1500 | 40.000 | 314.000 | |
| 3000 x 1525 | 6 | 47.010 | 4000 x 1750 | 40.000 | 314.000 | |
| 3660 x 1830 | 6 | 47.010 | 4000 x 2000 | 40.000 | 314.000 | |
| 4000 x 1750 | 6 | 47.010 | 5000 x 2500 | 40.000 | 314.000 | |
| 4000 x 1830 | 6 | 47.010 | 6000 x 2000 | 40.000 | 314.000 | |
| 4000 x 2000 | 6 | 47.010 | 7500 x 2500 | 40.000 | 314.000 | |
| 6000 x 1500 | 6 | 47.010 | 2000 x 1000 | 45.000 | 353.025 | |
| 6000 x 1830 | 6 | 47.010 | 2500 x 1250 | 45.000 | 353.025 | |
| 6000 x 2000 | 6 | 47.010 | 2500 x 1500 | 45.000 | 353.025 | |
| 6000 x 2500 | 6 | 47.010 | 3000 x 1500 | 45.000 | 353.025 | |
| 8000 x 2000 | 6 | 47.010 | 4000 x 2000 | 45.000 | 353.025 | |
| 8000 x 2500 | 6 | 47.010 | 5000 x 2500 | 45.000 | 353.025 | |
| 2000 x 1000 | 8 | 62.080 | 2000 x 1000 | 50.000 | 392.050 | |
| 2500 x 1250 | 8 | 62.080 | 2500 x 1250 | 50.000 | 392.050 | |
| 3000 x 1500 | 8 | 62.080 | 3000 x 1500 | 50.000 | 392.050 | |
| 3660 x 1830 | 8 | 62.080 | 4000 x 2000 | 50.000 | 392.050 | |
| 4000 x 2000 | 8 | 62.080 | 5000 x 2500 | 50.000 | 392.050 | |
| 5000 x 2500 | 8 | 62.080 | 6000 x 2000 | 50.000 | 392.050 | |
| 6000 x 1500 | 8 | 62.080 | 8000 x 2500 | 50.000 | 392.050 | |
| 6000 x 2000 | 8 | 62.080 | 2000 x 1000 | 60.000 | 471.000 | |
| 8000 x 2000 | 8 | 62.080 | 2500 x 1250 | 60.000 | 471.000 | |
| 2000 x 1000 | 10 | 78.050 | 3000 x 1500 | 60.000 | 471.000 | |
| 2500 x 1250 | 10 | 78.050 | 4000 x 2000 | 60.000 | 471.000 | |
| 3000 x 1500 | 10 | 78.050 | 5000 x 2500 | 60.000 | 471.000 | |
| 4000 x 1750 | 10 | 78.050 | 2000 x 1000 | 65.000 | 510.025 | |
| 5000 x 2500 | 10 | 78.050 | 2500 x 1250 | 65.000 | 510.025 | |
| 6000 x 1500 | 10 | 78.050 | 3000 x 1500 | 65.000 | 510.025 | |
| 6000 x 2000 | 10 | 78.050 | 4000 x 2000 | 65.000 | 510.025 | |
| 6000 x 2500 | 10 | 78.050 | 5000 x 2500 | 65.000 | 510.025 | |
| 10000 x 2000 | 10 | 78.050 | 2000 x 1000 | 70.000 | 549.05 | |
| 10000 x 2500 | 10 | 78.050 | 2500 x 1250 | 70.000 | 549.05 | |
| 2000 x 1000 | 12 | 94.020 | 3000 x 1500 | 70.000 | 549.05 | |
| 4000 x 2000 | 12 | 94.020 | 4000 x 2000 | 70.000 | 549.05 | |
| 6000 x 2000 | 12 | 94.020 | 5000 x 2500 | 70.000 | 549.05 | |
| 6000 x 2500 | 12 | 94.020 | 2000 x 1000 | 75.000 | 588.075 | |
| 2000 x 1000 | 12.05 | 98.013 | 2500 x 1250 | 75.000 | 588.075 | |
| 2500 x 1250 | 12.05 | 98.013 | 3000 x 1500 | 75.000 | 588.075 | |
| 3000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 75.000 | 588.075 | |
| 3050 x 1525 | 12.05 | 98.013 | 5000 x 2500 | 75.000 | 588.075 | |
| 4000 x 1750 | 12.05 | 98.013 | 2000 x 1000 | 80.000 | 628.000 | |
| 4000 x 2000 | 12.05 | 98.013 | 2500 x 1250 | 80.000 | 628.000 | |
| 5000 x 2500 | 12.05 | 98.013 | 3000 x 1500 | 80.000 | 628.000 | |
| 6000 x 1500 | 12.05 | 98.013 | 4000 x 2000 | 80.000 | 628.000 | |
| 6000 x 2000 | 12.05 | 98.013 | 2000 x 1000 | 90.000 | 706.05 | |
| 6000 x 2500 | 12.05 | 98.013 | 2500 x 1250 | 90.000 | 706.05 | |
| 2000 x 1000 | 15 | 117.075 | 3000 x 1500 | 90.000 | 706.05 | |
| 2500 x 1250 | 15 | 117.075 | 4000 x 2000 | 90.000 | 706.05 | |
| 3000 x 1500 | 15 | 117.075 | 5000 x 2000 | 90.000 | 706.05 | |
| 4000 x 1750 | 15 | 117.075 | 2000 x 1000 | 100.000 | 785.000 | |
| 4000 x 2000 | 15 | 117.075 | 2500 x 1250 | 100.000 | 785.000 | |
| 4000 x 2500 | 15 | 117.075 | 3000 x 1500 | 100.000 | 785.000 | |
| 5000 x 2500 | 15 | 117.075 | 4000 x 2000 | 100.000 | 785.000 | |
| 6000 x 2500 | 15 | 117.075 | 5000 x 2500 | 100.000 | 785.000 | |
| 2500 x 1250 | 20 | 157.000 | 2000 x 1000 | 110.000 | 863.050 | |
| 3000 x 1500 | 20 | 157.000 | 2500 x 1250 | 110.000 | 863.050 | |
| 4000 x 2000 | 20 | 157.000 | 3000 x 1500 | 110.000 | 863.050 |
**S355J2G3 Steel Sheets and Plates** find extensive use in construction, infrastructure, and engineering projects. You’ll often see them in bridges, buildings, pressure vessels, cranes, structural frames, and heavy equipment manufacturing. They’re also used in making machinery, storage tanks, and transportation equipment. Thanks to their strength and impact resistance, these plates are perfect for load-bearing structures and environments that face challenging weather conditions. Their weldability and formability make fabrication easier, positioning S355J2G3 as an outstanding choice for industries that need durable, reliable, and high-performing materials.
