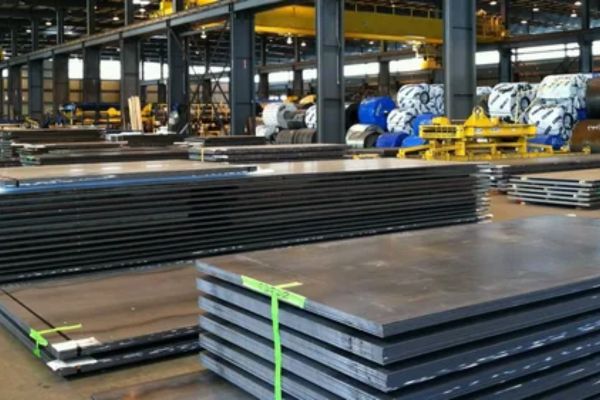

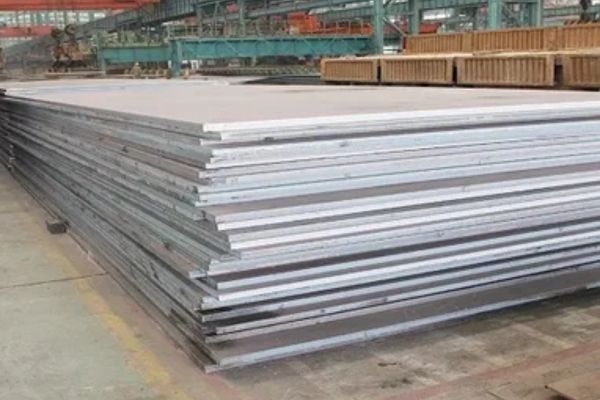

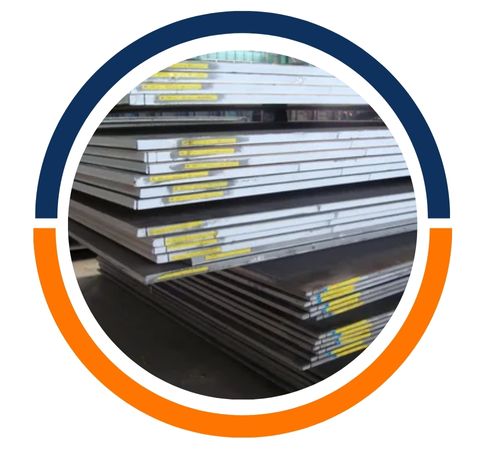

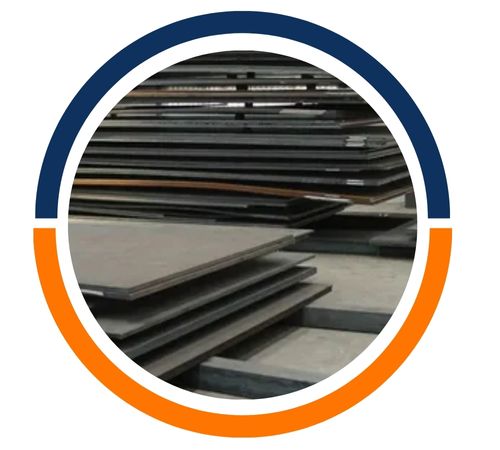

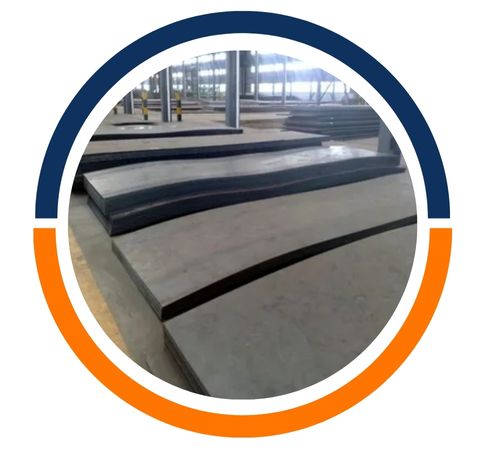

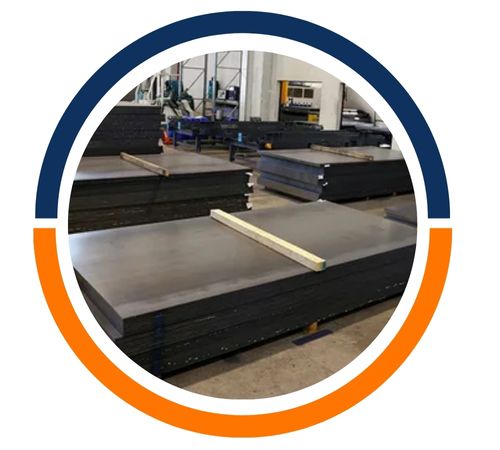

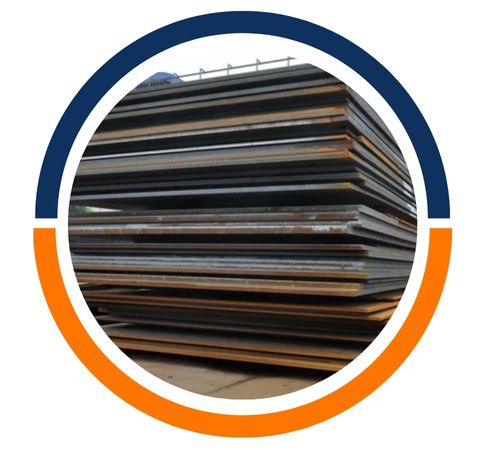

Travis Steel, located in Canberra, Australia, has earned a solid reputation as a reliable manufacturer and supplier of SA 285 Grade C Sheets and Plates, celebrated for their outstanding quality and performance. These carbon steel plates are specifically crafted for low to intermediate tensile strength pressure vessels and boilers. With a strong focus on precision engineering and adherence to global standards, Travis Steel guarantees that every product offers excellent weldability, durability, and resistance to moderate temperature conditions. Their commitment to quality and customer satisfaction has made them a go-to choice for industries in need of trustworthy and cost-effective steel solutions.
SA 285 Grade C Sheets and Plates are made from carbon steel that includes moderate amounts of carbon, manganese, phosphorus, sulfur, and silicon. This blend gives the plates impressive ductility and strength. In terms of mechanics, they boast a tensile strength between 415–585 MPa and a yield strength of around 205 MPa, ensuring reliable performance under pressure. The material also showcases excellent forming and welding characteristics, making it perfect for fabrication and structural applications across various industries. Its well-balanced mechanical and chemical properties guarantee long-lasting reliability and safety in service.
Grade : Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength – A285 GR.A
Width :Â 1500mm-3000mm
Thickness :Â 3mm-600mm
Length :Â 3000mm-11000mm
Production :Â Hot-Rolled (HR)
Heat Treatment :Â Rolled / Normalised/N+T/QT
| Element | C % Max | Mn % Max | P % Max | S % Max |
| Gr C | 0.17 | 0.98 | Max 0.035 | Max 0.035 |
| Mechanical Property SA285 Grade A | Tensile strength, kis [MPa] | Yield strength, min, kis [MPa] | Elongation in under [50mm], min, % | Elongation in 8inch or under [50mm-200mm], min, % |
| SA285 Gr C | 310-450 | 165 | 30 | 27 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
These SA 285 Grade C Sheets and Plates find extensive use in the fabrication of pressure vessels, storage tanks, boilers, and heat exchangers. They are particularly suited for sectors like petrochemical, power generation, oil and gas, and chemical processing, where materials need to endure moderate pressure and temperature conditions. Additionally, these plates are utilized in structural applications, process equipment, and marine engineering due to their good weldability and machinability. Their ability to maintain strength and toughness under stress makes them a preferred option for both industrial and commercial applications.
