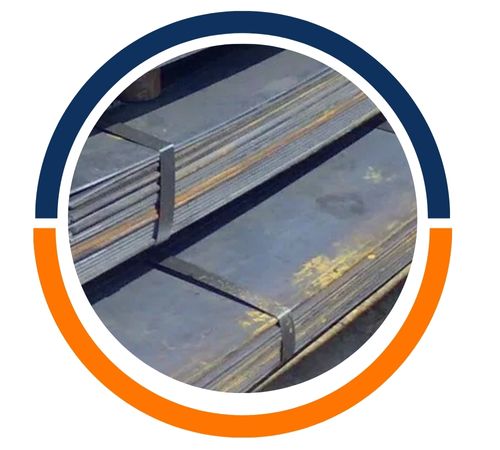

Travis Steel, located in Canberra, Australia, is a reliable manufacturer and supplier of Shipbuilding Steel Sheets and Plates, providing top-notch steel solutions specifically designed for marine and offshore applications. Renowned for their durability, toughness, and resistance to corrosion, Travis Steel’s shipbuilding steel products adhere to strict international standards for maritime construction. Built to endure the harsh conditions of the ocean, these sheets and plates deliver outstanding performance in hulls, decks, and structural components. With a strong focus on quality, safety, and reliability, Travis Steel supplies materials that contribute to the longevity and high performance of vessels, ensuring structural integrity and operational efficiency across a variety of shipbuilding and offshore projects.
Shipbuilding Steel Sheets and Plates are generally made from high-strength, low-alloy steels with carefully controlled chemical compositions that provide excellent toughness, weldability, and corrosion resistance. Mechanically, they boast high tensile and yield strength, along with good ductility, which allows them to absorb impact and stress during ship operations. The steel is designed to resist cracking, deformation, and fatigue even when constantly exposed to harsh marine conditions. Advanced metallurgical processes guarantee consistent quality and long-lasting durability, making these sheets and plates ideal for critical structural and load-bearing components in shipbuilding.
Weight | Up to 40 ton |
| Width | 1500-4000 |
| Thickness | 4-200 mm |
grades | EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents |
| Length | Up to 20000 |
| Delivery condition | quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled |
| Grade | C%≤ | Al % | Mn % | p % ≤ | S % ≤ | Si % | Nb % | V % |
|---|---|---|---|---|---|---|---|---|
| D32 A32 E32 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | — | — |
| A | 0.22 | — | ≥ 2.5C | 0.04 | 0.40 | 0.10~0.35 | — | — |
| B | 0.21 | — | 0.60~1.00 | 0.04 | 0.40 | 0.10~0.35 | — | — |
| E | 0.18 | ≥0.015 | 0.70~1.20 | 0.04 | 0.04 | 0.10~0.35 | — |  |
| D36 A36 E36 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | 0.015~0.050 | 0.030~0.10 |
| D | 0.21 | ≥0.015 | 0.60~1.00 | 0.04 | 0.04 | 0.10~0.35 | — | — |
| Grade | Yieldpoint (Mpa) ≥ | Tensile Strength (Mpa) | Elongation （%）≥ | cold bend test | Thickness (mm) | V-impact test | |||
|---|---|---|---|---|---|---|---|---|---|
| b=5a 120° | b=2a 180° | Temperature （℃） | Average AKV A kv /J | ||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A | 235 | 400~490 | 22 | — | d=2a | ≤50 mm | — | — | — |
| B | d=3a | — | 0 | 27 | 20 | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| A32 | 315 | 440~590 | 22 | d=3a | — | ≤50 mm | 0 | 31 | 22 |
| D32 | -20 | ||||||||
| E32 | -40 | ||||||||
| A36 | 355 | 490~620 | 21 | d=3a | — | ≤50 mm | 0 | 34 | 24 |
| D36 | -20 | ||||||||
| E36 | -40 | ||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Travis Steel is one of the most prominent manufacturers and suppliers of superior quality Shipbuilding Steel Sheet and Plate in Canberra, Australia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| Grade | Maximum Thickness (mm) | Standard | Minimum Thickness (mm) |
|---|---|---|---|
| EH36 | 150 mm | Lloyds Register | 5 mm |
| AH36 | 150 mm | Lloyds Register | 5 mm |
| Grade A | 150 mm | Lloyds Register | 5 mm |
| DH36 | 150 mm | Lloyds Register | 5 mm |
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | Â | Â | Â |
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
These Shipbuilding Steel Sheets and Plates are extensively used in constructing commercial ships, naval vessels, offshore platforms, and marine structures. Common applications include hull plating, decks, bulkheads, and structural frames where strength, toughness, and resistance to corrosion and impact are essential. They are also employed in ship repair, retrofitting, and offshore installations that require dependable, high-performance steel. The combination of durability, strength, and formability makes shipbuilding steel sheets and plates the go-to choice for engineers and designers alike.
